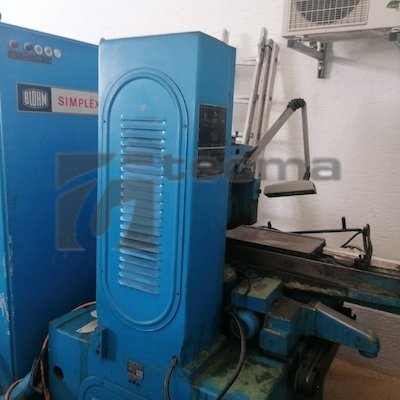

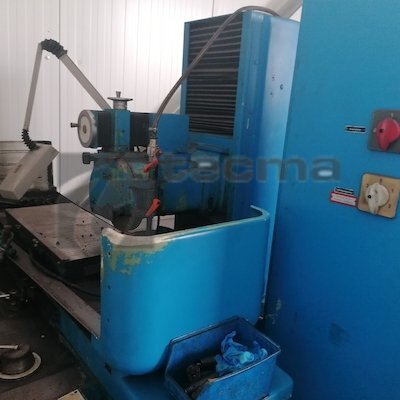

ROBERT BLOHM - SIMPLEX 7, Surface Grinder/ Flachschleifmaschine/ Rettficatrice Piana
Katalog Spezifikationen:
Nummer:
1W16GR01
Hersteller:
ROBERT BLOHM
Sonstige Information:
• size of the table: 1. 100 x 300 [mm] • max grinding length: 700 [mm] • max grinding width: 350 [mm] • distance table / spindle axis: 575 [mm] • transversal: 300 [mm] • hydraulic longitudinal: 570 [mm] • transversal automatic feeds: 2-65 [mm] • longitudinal traverse speed: 2-30 [m/min.] • spindle speed : 1400/2800 [Rpm] • spindle power: 4 [kW] • min/max grinding wheel diameter: 165 - 400 [mm] • grinding wheel width - normal , 50 [mm] - bigger, 80 [mm] • grinding wheel boring, - normal , 76 [mm] - for grinding wheel diameter 400 , 127 [mm]
